In today’s digital imaging world, understanding and measuring light accurately is crucial for photographers, videographers, lighting designers, and UI/UX developers. LightScope (formerly known as LightMeter V2) brings professional-grade light measurement capabilities to iOS devices through a comprehensive and technically advanced application.
Download
https://apps.apple.com/us/app/lightscope/id6745493531Technical Foundation and Core Functionality
LightScope transforms your iPhone or iPad camera into a sophisticated light meter by leveraging the device’s camera sensor data. The app accesses EXIF metadata including aperture (F-value), exposure time, and ISO sensitivity to calculate illuminance using a precise formula:
Illuminance (lux) = (F-value² / (Exposure Time × ISO)) × Calibration Factor
For measuring luminous intensity, LightScope applies the inverse square law:
Luminous Intensity (candela) = Illuminance (lux) × Distance²
This calculation provides accurate candela measurements when the distance to the light source is known, making it invaluable for lighting designers and photographers working with artificial light sources.
Color Temperature Analysis Using McCamy’s Formula
One of LightScope’s key technical achievements is its precise color temperature measurement. The app extracts RGB color values from the camera feed and applies McCamy’s formula after converting these values to the XYZ color space:
- RGB values are captured from the image
- These values are converted to the XYZ color space
- Chromaticity coordinates are calculated
- McCamy’s formula is applied to determine color temperature
This sophisticated approach allows for accurate temperature readings in the range of 1500K to 15000K, covering everything from warm candlelight to cool blue daylight. The algorithm includes optimizations for low-light environments and automatic correction for various light source types, including fluorescent lighting which exhibits characteristic green spikes that would otherwise distort readings.
Advanced Visual Analysis Tools
16-Level Brightness Histogram
LightScope provides real-time histogram analysis by dividing the 0-255 brightness range into 16 segments. This visualization uses an intuitive color gradient from blue (shadows) to yellow (highlights) for better interpretation of light distribution. The histogram is complemented by advanced statistical measures:
- Mean brightness
- Median value
- Mode (most frequent value)
- Standard deviation
- Shadow/midtone/highlight distribution via pie chart
This level of analysis allows photographers to precisely evaluate exposure and avoid clipping in shadows or highlights.
Signal-to-Noise Ratio (SNR) Measurement
The app calculates image quality through SNR measurement, expressed in decibels (dB). This industry-standard approach uses the formula:
SNR (dB) = 20 × log₁₀(Signal/Noise)
where Signal is the mean pixel value and Noise is the standard deviation. LightScope implements a 10-frame moving average filter to stabilize these measurements and provides a quality grading system from “Low” (below 20dB) to “Excellent” (above 50dB).
WCAG-Compliant Contrast Ratio Analysis
For UI/UX designers, LightScope offers contrast ratio measurements that align with Web Content Accessibility Guidelines (WCAG). The app calculates the ratio between the brightest and darkest areas in the scene, categorizing the results according to WCAG standards:
- AAA level (7:1 or higher)
- AA level (4.5:1 to 7:1)
- A level (3:1 to 4.5:1)
- Below standard (less than 3:1)
This feature is crucial for designing accessible interfaces and evaluating real-world contrast conditions.
Software Architecture
LightScope is built with a modern tech stack that emphasizes performance and responsiveness:
- SwiftUI: For creating a fluid and responsive user interface
- AVFoundation: Handles camera sensor access and data processing
- Swift Charts: Powers the visualization of measurement data
- SQLite3: Provides efficient local data storage using raw SQL
- Combine: Enables reactive programming for real-time data updates
The application follows a clean architecture with clear separation between views, models, and data management:
- Views (ContentView, CameraView, SettingsView, HistoryView)
- Models (LightMeasurement)
- Managers (DatabaseManager, CameraViewController)
Advanced User Experience Features
Beyond the core measurement capabilities, LightScope offers several features that enhance the user experience:
Image Capture and Analysis
The app can capture images at the point of measurement, automatically correcting for device orientation and camera position. These captured images are stored with the measurement data and displayed as thumbnails in the history view. Users can examine images in full-screen mode with pinch-to-zoom, drag navigation, and brightness adjustment for low-light images.
Full-Screen Camera Mode

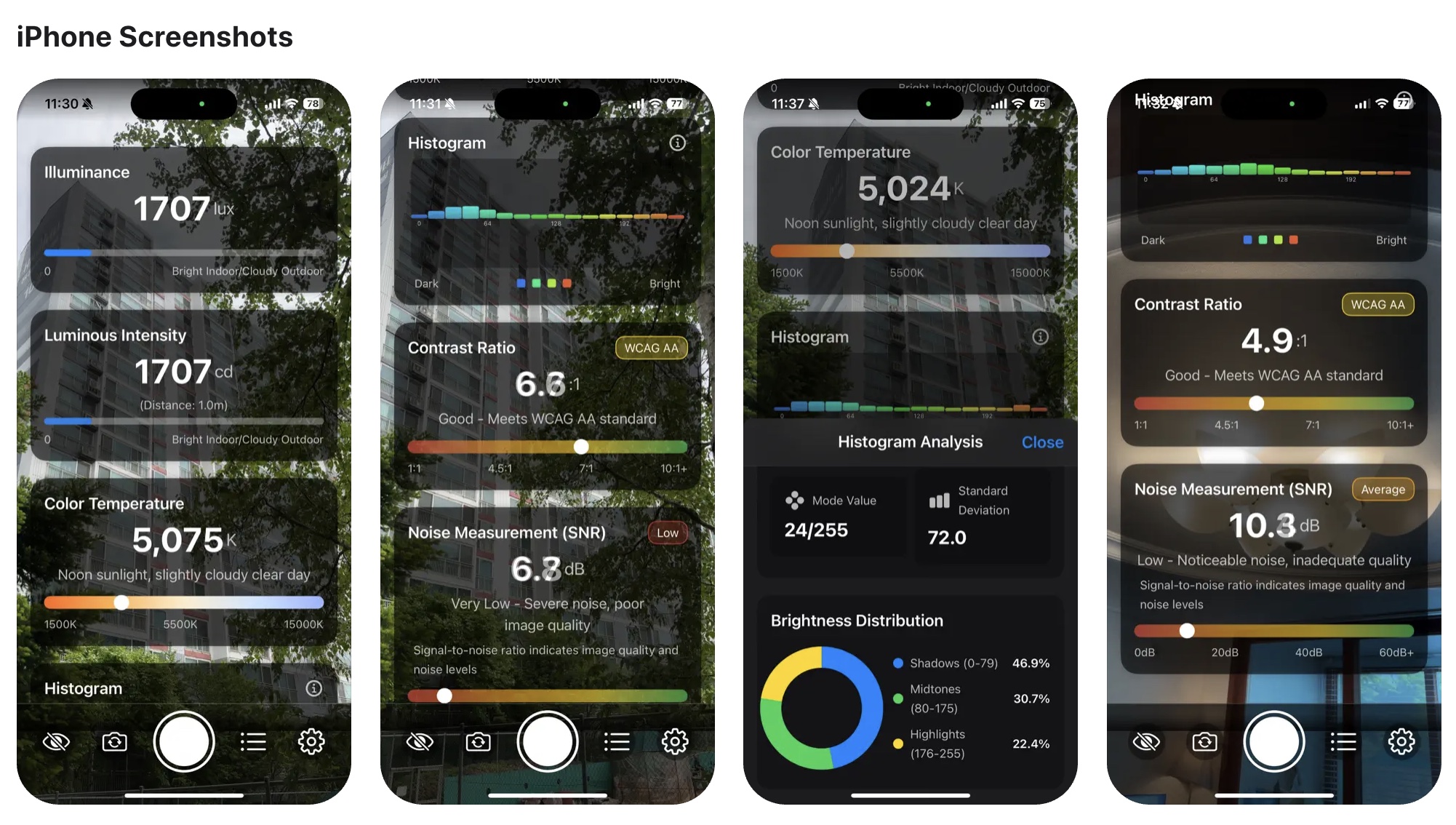

LightScope includes a toggle feature that hides all panels to focus on the camera view, displaying only a mini information panel with key measurements. This mode presents real-time data with color-coded visual feedback:
- Illuminance: Colors range from red (very dark) to blue (very bright) across six levels
- Color temperature: Colors reflect the actual temperature, from orange (warm) to blue (cool)
- Contrast ratio: Colors range from red (insufficient) to green (excellent) based on WCAG guidelines
- SNR: Colors range from red (very low) to green (excellent) to visualize quality levels
Complete Dark/Light Mode Integration
All UI elements dynamically adapt to the system theme, ensuring optimal visibility in any environment. The app implements a color asset system for consistent UI experience and smooth transitions when switching between modes.
Practical Applications
LightScope serves diverse professional needs:
- Photographers: Evaluate lighting conditions, exposure settings, and color temperature
- Videographers: Monitor scene contrast, assess light quality, and maintain consistent lighting
- Lighting designers: Measure illuminance and luminance in architectural and stage lighting
- UI/UX developers: Test color contrast for accessibility compliance in real-world conditions
- Artists: Analyze color temperature and lighting conditions for accurate color reproduction
- Industrial inspectors: Assess lighting conditions for quality control environments
Technical Optimizations
The app includes numerous optimizations:
- Center-weighted image analysis for accurate subject quality evaluation
- 10-frame moving average filter for measurement stabilization
- Automatic detection and correction of fluorescent lighting characteristics
- Low-light algorithm enhancements for stable color temperature calculation
- Exception handling for mathematical edge cases (division by zero, out-of-range values)
- Compiler performance optimization through function-based approach to complex nested view structures
Conclusion
LightScope represents a significant advancement in mobile light measurement technology. By combining sophisticated algorithms with an intuitive interface, it delivers professional-grade light analysis capabilities in a portable, accessible format. For anyone working with light and color, whether in photography, videography, design, or development, LightScope provides the technical insights needed to achieve optimal results.
